Garmin Fenix 7 Pro Turns Off When Unplugged? What We Found Inside

A Garmin watch that works perfectly while connected to its charger but immediately shuts off when unplugged sounds like an obvious battery failure.

But as one recent repair at Joe’s GE Repair Center showed us, the battery itself isn't always the problem.

This Garmin Fenix 7 Pro Solar arrived at our repair center with a very specific symptom. The watch would power on and operate while connected to its charger, but as soon as the charger was disconnected, the screen went black. Plugging the charger back in caused the watch to start again.

Instead of immediately replacing the battery, our technician opened the watch and inspected the internal connections.

The eventual fix was surprisingly simple: remove and reseat the internal ribbon connection.

No battery replacement was required.

Quick Answer: Why Does a Garmin Fenix Turn Off When Unplugged?

If your Garmin Fenix only works while connected to its charger, a failed battery is certainly one possible cause, but it isn't the only possibility.

Depending on the watch and its condition, possible causes can include:

• A worn or failed battery
• A poor battery connection
• A partially seated internal ribbon cable
• A damaged ribbon cable or connector
• Corrosion or contamination around an internal connection
• A motherboard or power management problem

In the Fenix 7 Pro Solar shown in this article, our technician found that reseating the internal connection restored normal operation.

That's why we recommend diagnosing the watch before assuming that the battery needs to be replaced.

What the Customer Reported

The customer described the problem clearly:

The watch works when it's plugged in and charging. As soon as it is unplugged, the screen goes black. When plugged back in, the watch has to start from being powered off again.

That's an important symptom because it tells us the watch is capable of powering on and operating when external power is available.

The problem appears when the watch needs to transition from external charging power to its internal battery.

A bad battery would be one logical suspect, but our technicians don't want to replace a component until we know what actually failed.

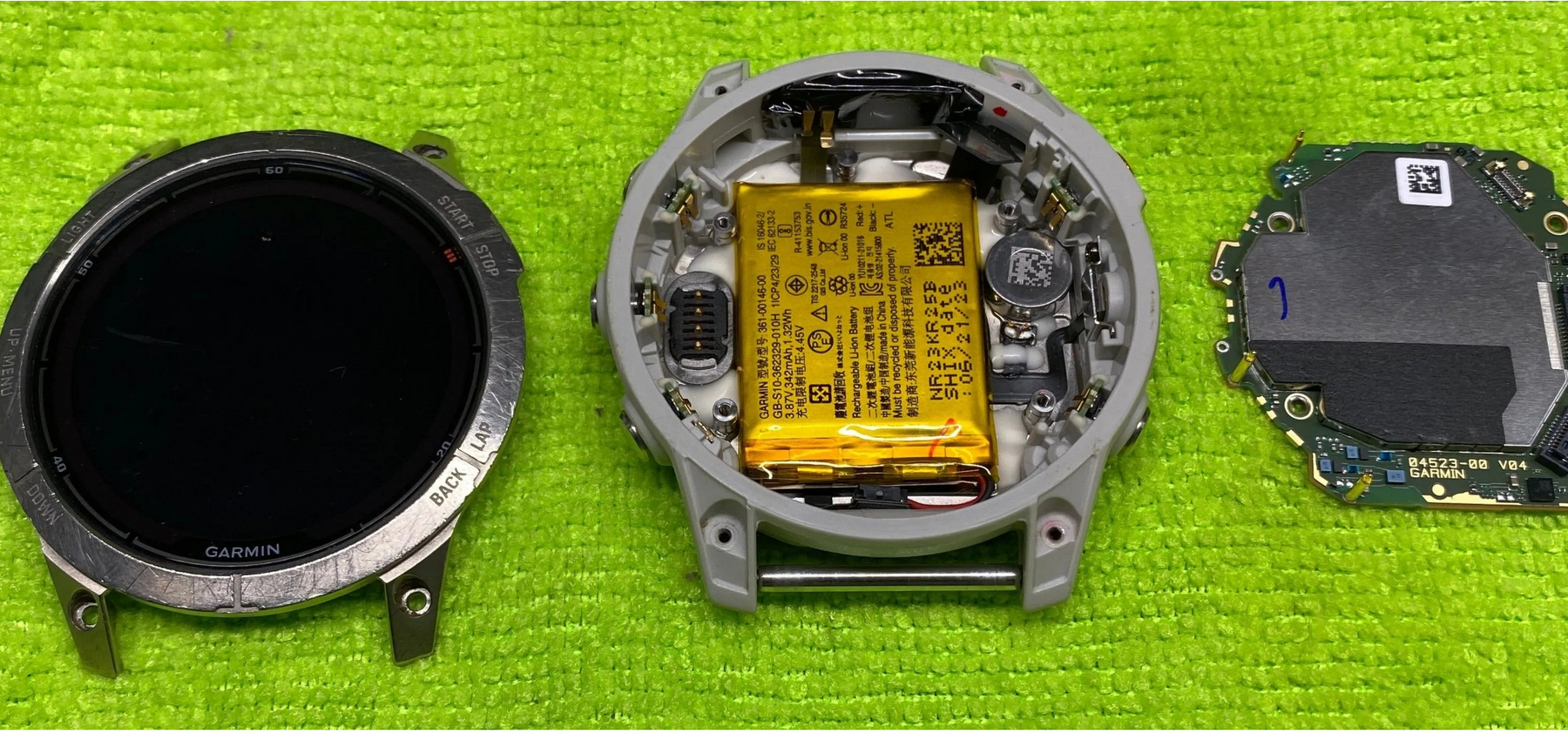

Opening the Garmin Fenix 7 Pro Solar

Our technician opened the watch so the battery, motherboard, ribbon connections, and other internal components could be inspected.

With the watch disassembled, our technician inspected the battery and the connections between the battery, internal ribbon cables, and motherboard.

The battery itself did not show an obvious physical problem.

The Internal Connection Became the Focus

Our technician checked the internal ribbon connections, including the connection associated with the battery and other internal components.

During inspection, the battery ribbon showed a slight bend, so the connections were disconnected, inspected, and properly reseated.

After inspecting and reseating the connections, the watch was reassembled enough to test it again.

This is where the diagnosis became interesting.

Reseating the Connection Fixed the Watch

Once the ribbon and board connections were properly reseated, the Fenix 7 Pro Solar powered on normally from its internal battery.

It no longer immediately shut off when disconnected from the charger.

Our technician then charged the watch to 100% and tested it again to verify that it continued operating correctly.

No replacement battery was needed.

In this particular repair, correcting the internal connection was enough to restore normal operation.

Why This Garmin Repair Is Important

This is a great example of why we don't recommend diagnosing electronics based on one symptom alone.

Consider the original complaint:

“My Garmin only works when it's plugged in.”

It's very easy to hear that and conclude:

“The battery is dead.”

Sometimes that diagnosis will be correct, but not always.

If the battery has power but isn't making a reliable electrical connection to the rest of the watch, the watch can potentially behave as though the battery itself has failed.

Replacing a perfectly usable battery wouldn't solve that underlying connection problem.

Does This Mean You Should Open Your Garmin and Reseat the Ribbon?

Not necessarily.

This article documents one real Fenix 7 Pro Solar repair performed at Joe’s GE Repair Center. It should not be interpreted to mean that every Garmin that shuts off when unplugged has a loose ribbon cable.

The same general symptom can potentially be caused by several different failures.

For example, another watch with the same complaint could actually have:

• A worn out battery
• A damaged battery ribbon
• A damaged motherboard connector
• Corrosion or liquid damage
• A power management circuit failure
• Another internal electrical problem

Opening a Garmin watch also compromises the factory seal until the watch is properly resealed. If you're not comfortable working with small connectors, ribbon cables, batteries, and seals, professional diagnosis may be the better option.

Battery Failure vs. Connection Failure

There is no single external symptom that can always distinguish a failed battery from an internal connection problem.

However, there are some clues technicians can use during diagnosis.

Possible Battery Failure Symptoms

• Battery life has gradually become shorter over time
• The watch shuts down at unusually high battery percentages
• The battery will no longer accept or retain a normal charge
• The watch has accumulated years of regular charging cycles

Possible Connection or Internal Hardware Symptoms

• The failure began suddenly
• The watch works reliably on external power but immediately dies when disconnected
• Operation changes when an internal connection is moved or reseated
• There is visible damage to a ribbon or connector

These are diagnostic clues rather than guarantees. The watch still needs to be inspected and tested to determine the actual cause.

Don't Replace Parts Until You Know What Failed

This repair also illustrates one of the principles we use throughout our repair center:

Diagnose first. Replace parts second.

Replacing parts based only on symptoms can become expensive quickly.

If we had automatically treated this watch as a battery failure, a replacement battery could have been installed without addressing the actual problem.

Instead, our technician inspected the existing battery, ribbon cables, motherboard, and connectors first.

In this case, that meant the customer didn't need an unnecessary replacement component.

Other Garmin Problems We See

Power and battery problems are only one category of Garmin repairs entering our shop.

Some of the most common Garmin problems we currently diagnose include:

• Side buttons that no longer click or respond
• Battery failures and rapidly decreasing battery life
• Screen and display problems
• Charging and power issues
• Internal connection problems
• Water or corrosion damage

In fact, side button failure is currently the most common Garmin repair issue we see across several Garmin watch families.

If your problem involves the buttons instead of power, we've documented that repair trend separately:

Garmin Fenix, Forerunner, and Instinct Buttons Not Working? Common Causes Explained →

Another Lesson From a Garmin Fenix Repair

This isn't the first Fenix repair where a relatively small internal detail created a much larger problem.

We've also documented a Fenix 7X repair where improper screw tightening caused damage during reassembly.

How Over-Tightening Screws Can Damage Your Garmin Fenix 7X →

Cases like these are why we continue documenting unusual repairs that come through our shop. They help show that the obvious diagnosis isn't always the correct one.

Should You Repair a Garmin Fenix 7 Pro Solar?

In many cases, yes.

The Fenix 7 Pro Solar is a premium smartwatch, and a failure involving one battery, button, ribbon cable, screen, or other component doesn't necessarily mean the entire watch needs to be replaced.

Whether repair makes sense depends on the actual failure and the overall condition of the watch.

That's why determining the cause first is so important.

Final Thoughts

This Garmin Fenix 7 Pro Solar arrived at Joe’s GE with a symptom that could easily have been mistaken for a dead battery:

The watch worked on the charger and immediately shut off when unplugged.

After opening the watch and inspecting its internal components, our technician found that replacing the battery wasn't necessary.

The internal connections were inspected and reseated. The watch powered normally from its battery again, and it was charged to 100% and tested successfully.

It's a simple repair outcome with an important lesson:

“Only works while plugged in” does not automatically mean “bad battery.”

Sometimes the problem is the battery. Sometimes it's the connection. Sometimes the only way to know is to properly diagnose the device before replacing anything.
