Sony WH-1000XM6 Headband Hinge Repair Kit with Tools and 12-Pin Connectors Replacement Parts

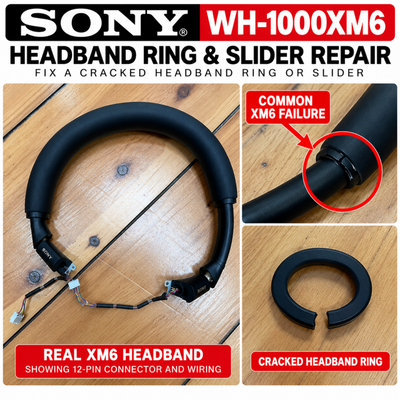

Replacing a cracked headband ring or slider on your Sony WH-1000XM6? The hardest part is getting the headband wire back through the hinge once the old connector comes off, and that is exactly where this kit earns its keep. You get the tools, two new 12-pin connectors, and a wire guide tube, so one kit covers both sides.

• Brand: JoesGE
• Condition: New
• Fits Models: Sony WH-1000XM6 (XM6)

Key Features

• Everything you need for the Sony WH-1000XM6 hinge and headband ring repair except the ring and slider
• 2 new 12-pin headband wire connectors, enough for both sides
• Clear wire guide tube that slides over the headband wire so it feeds through the hinge without snagging
• T5 Torx, Phillips 2.0, and 1.5mm flat head precision screwdrivers with aluminum handles and rubber grip rings
• Double ended stainless steel pry tool and nylon spudger for opening the ear cup and headband cover

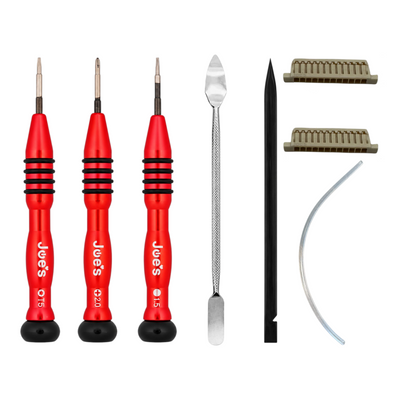

What's Included

• 1 x T5 Torx screwdriver
• 1 x Phillips 2.0 screwdriver
• 1 x 1.5mm flat head screwdriver
• 1 x Double ended stainless steel pry tool
• 1 x Nylon spudger
• 2 x 12-pin headband wire connectors (one for each side)
• 1 x Clear wire guide tube

Compatibility

Made for the Sony WH-1000XM6 headband ring, slider, and hinge repair on either side. The screwdrivers and pry tools also work for every other XM6 repair. The connectors do not fit the WH-1000XM5, WH-1000XM4, or earlier models. The headband ring and slider are sold separately in left and right.

Installation Notes

Difficulty: Advanced. To replace a cracked headband ring or slider, the original 12-pin connector on the headband wire has to be removed so the wire can pass through the hinge and the new ring and slider. Slide the clear guide tube over the bare wire ends to keep them together while you push them through, then fit the new 12-pin connector. Take photos as you take it apart so the wire routing goes back the same way.
