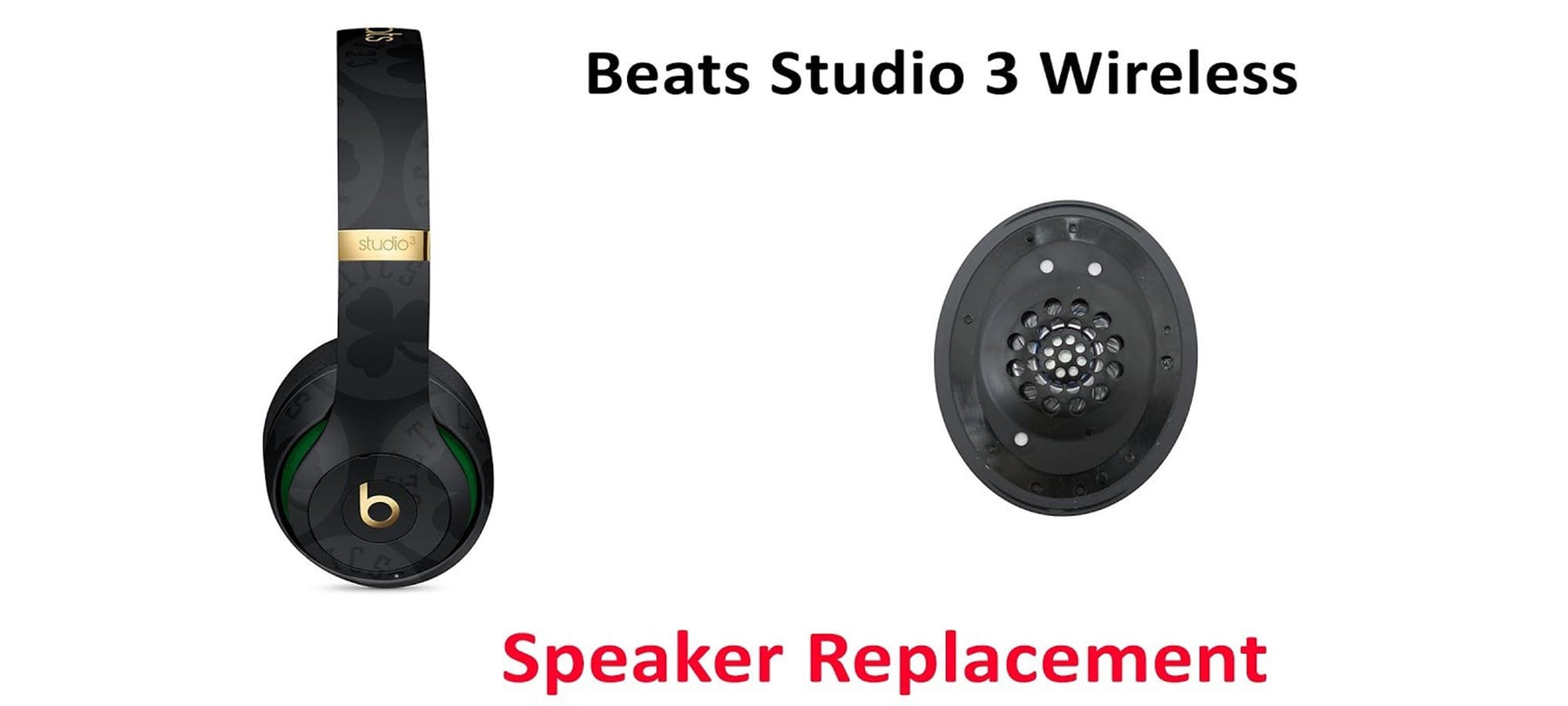

How to Replace a Damaged Speaker Driver on the Beats Studio 3 Wireless Headphones (DIY Repair Guide)

Are your Beats Studio 3 Wireless headphones producing distorted or crackling audio, especially at higher volumes? If you’re also noticing reduced volume or complete sound loss on one side, these are strong indicators that the speaker driver may be damaged and needs to be replaced.

In this DIY repair guide, we show you how to replace the worn-out speaker driver on the Beats Studio 3 Wireless headphones at home with original replacement parts. You will find all the tools that you need for this repair, along with the OEM spares, listed below.

Do you want to get your headphones professionally repaired? Send us your Beats Studio 3 Wireless headphones, and our repair ninjas will restore your device to peak working condition. Follow the link, select the issues that you’re experiencing, and click See Estimated Total to view the total repair cost instantly.

Repair Difficulty

Moderate / Requires 30-45 minutes to complete.

This repair requires the careful handling of small screws, delicate internal cables, a heat gun, and a soldering iron. Prior experience of soldering will be helpful, but is not compulsory. With a bit of patience and attention to detail, you can replace the blown speaker driver on the Beats Studio 3 Wireless headphones at home.

Replacement Parts You’ll Need

Restore the functionality of your Beats Studio 3 Wireless headphones with original spares. Select the OEM replacement parts from the drop-down menu below to bring your device back to peak working condition.

• Beats By Dre Studio 3 Wireless Speaker Housing with Driver Replacement. Choose the correct side and color from the drop-down menus below.

Get an OEM replacement Speaker Housing with Driver for your Beats Studio 3 Wireless headphones today. Click the link to visit our store, then scroll down to the Customers Also Add section to purchase the original spare part and the tools you’ll need for this repair, all in one click. Explore the Beats Studio Repair Kit w/ Ear Pad Tape & Opening Tools kit for maximum savings.

Tools You’ll Need

Before starting the speaker driver replacement on your Beats Studio 3 Wireless headphones, gather the following tools. Using the right tools will help you complete the repair successfully, without damaging delicate internal components, such as wires, ports, or circuit boards. We used the following tools and recommend them for a safe, professional-quality DIY speaker driver replacement at home.

• Strong Metal Pry Tool
• 1.5mm Flathead Screwdriver
• 2.0mm Philips Screwdriver
• Heat Gun
• Soldering Iron
• Heat-Proof Anti-Static Rubber Work Mat

Not ready to invest in tools yet? Find your device in our repair catalog, select the issues it’s experiencing, and send it to us. Our repair ninjas will restore your device to peak working condition.

Step-by-Step DIY Guide to Replacing the Speaker Driver on the Beats Studio 3 Wireless Headphones

In this detailed DIY repair guide, we show you how to replace the blown speaker driver on the Beats Studio 3 Wireless headphones. Follow each step carefully and use the accompanying images as a visual guide to complete the repair with confidence.

Step 1: Remove the Earpad Cushion

Insert the strong metal pry tool under the earpad cushion and pry it out from the earcup.

Step 2: Extract the Speaker Housing

2.1. Unfasten the 2 silver screws securing the AUX port and the 5 black screws holding the speaker housing using a 2.0mm Philips screwdriver.

2.2. Apply moderate heat using a heat gun (~90°C) uniformly on the MS port to soften the adhesive before gently pulling the cable out using your fingers. Using too much heat can damage the port and the circuit board.

2.3. Unsolder the speaker wires.

Step 3: Install New Speaker Housing

3.1. Connect the 2 wires to the new speaker and solder them securely in place.

3.2. Remove the old adhesive using a flathead screwdriver.

3.3. Attach the MS port and tuck the wires in the designated groove on the new speaker housing.

3.4. Fasten all 7 screws in the correct orientation. Make sure to move the internal wires out of the screw holes to avoid damaging them.

Step 4: Attach the Earpad Cushion

4.1. Peel off the old adhesive tape.

4.2. Install new adhesive tape. Make sure the screw holes on the tape align with those on the earcup.

4.3. Remove the protective film from the adhesive tape.

4.4. Align the earpad cushion with the earcup and press it until you hear the clips click into place.

Congratulations! Your Beats Studio 3 Wireless Headphones are Ready to Use

You have successfully replaced the speaker driver on the Beats Studio 3 Wireless Bluetooth headphones. Check the audio quality, buttons, and Bluetooth pairing to confirm the device is working properly.
