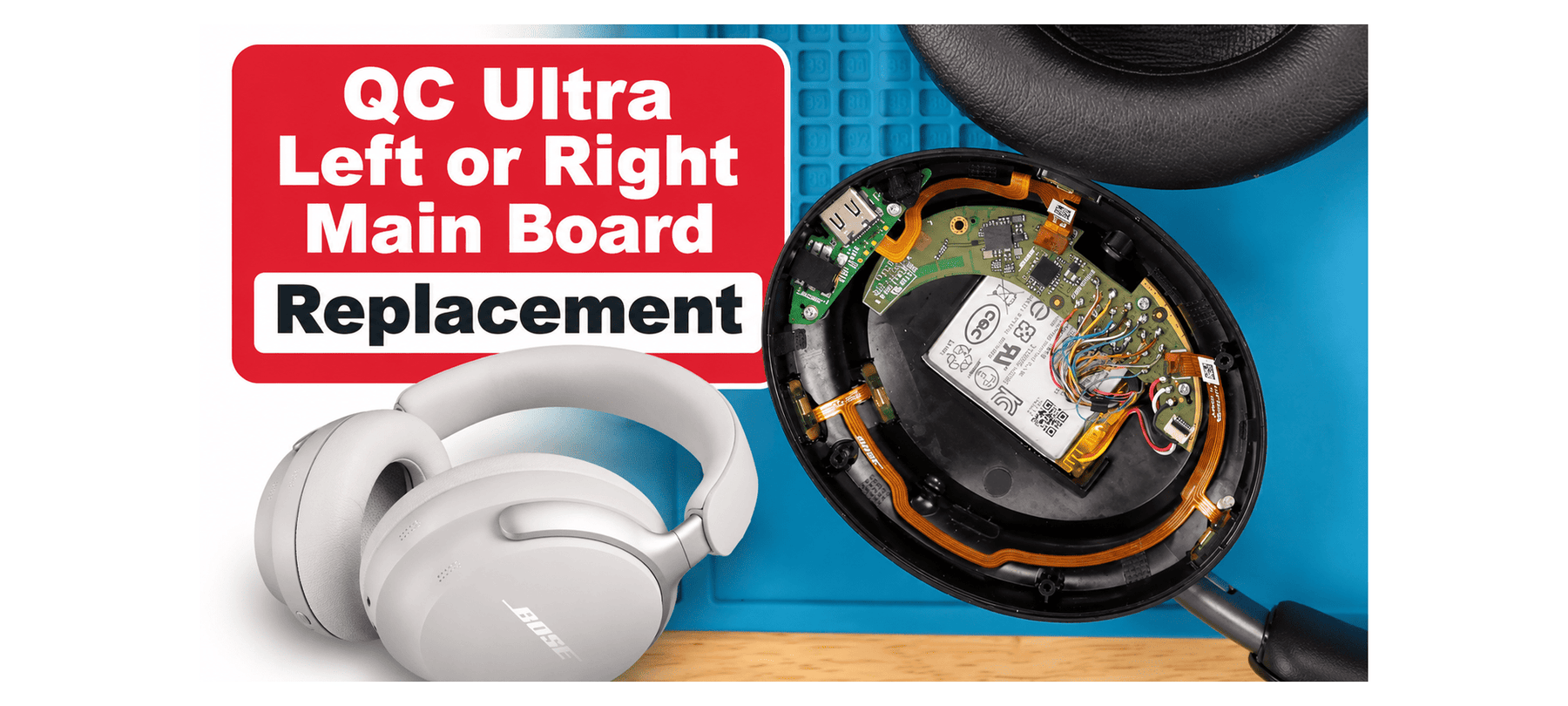

How to Replace a Dead or Faulty Left or Right Main Board on the Bose QuietComfort (QC) Ultra (DIY Repair Guide)

Do your Bose QuietComfort (QC) Ultra wireless headphones refuse to power on, overheat during charging, or switch off unexpectedly despite having a good battery? Do Bluetooth connections drop or the headphones lose wireless functionality altogether? If you’re experiencing any of these issues, replacing the main board may restore stable functionality.

In this DIY repair guide, we show you how to replace a faulty main board on the Bose QuietComfort (QC) Ultra wireless headphones at home with original replacement parts. Find the tools and genuine spares for this repair below.

Prefer to get your headphones repaired by professionals? Send us your Bose QuietComfort (QC) Ultra headphones using our mail-in repair service, and our repair ninjas will restore your device to peak working condition. You don’t need to pay upfront. We only charge after repairing your device.

Fill out our repair form to receive your free prepaid shipping label, then send your device. We’ll take care of the rest.

Video Tutorials

Here are the video tutorials for replacing the left and right main boards on the Bose QuietComfort (QC) Ultra wireless Bluetooth headphones.

• Bose QuietComfort (QC) Ultra Left Main Board Replacement

• Bose QuietComfort (QC) Ultra Right Speaker Housing Replacement

Repair Difficulty

Moderate / Requires 30-45 minutes to complete.

This repair involves carefully disassembling the Bose QuietComfort Ultra headphones to reveal the malfunctioning main PCB and replacing it with genuine spare parts. While prior soldering experience may help, it’s not essential for this repair job. With the right tools, a bit of patience, and attention to detail, you can replace the main board in the Bose QC Ultra headphones at home.

Replacement Parts You’ll Need

Restore the form and functionality of your Bose QC Ultra Bluetooth headphones with genuine spares. Select the OEM replacement parts from the drop-down menu below to bring your device back to peak working condition.

• Bose QuietComfort Ultra (2023) Headphones Spare Replacement Repair - Parts

Looking for another spare part? Browse Joe’s GE Parts Catalog for the Bose QuietComfort (QC) Ultra headphones to find genuine replacement parts.

Tools You’ll Need

Before starting the Bose QuietComfort (QC) Ultra main board replacement, gather the following tools. Using the correct instruments will help you complete the repair successfully. We used the following tools and recommend them for a safe, professional-quality DIY fix at home.

• 2.0mm Phillips Screwdriver
• Strong Metal Pry Tool
• Precision Tweezers
• Soldering Iron
• Soldering Flux
• Anti-static Heat-proof Rubber Work Mat

Don’t want to DIY? Let our certified techs handle the repair. Book your repair now.

Step-by-Step DIY Guide to Replacing the Malfunctioning Main Board on the Bose QuietComfort (QC) Ultra Wireless Headphones Yourself

In this detailed DIY repair guide, we show you how to replace a malfunctioning main board on Bose QuietComfort (QC) Ultra headphones. The repair process is similar for both sides. We will highlight the minor differences that you need to remember while repairing the headphones yourself. Follow each step carefully and use the accompanying images as a visual guide to complete the repair with confidence.

Step 1: Extract the Earpad Cushion

1.1. Insert a strong metal pry tool into the seam between the earpad cushion and the earcup, and gently pry it off.

1.2. Extract the foam mesh with the pry tool and set it aside.

Step 2: Extract the Speaker Housing

2.1. Unfasten 4 screws securing the speaker housing to the earcup and store them in one of the slots on the rubber work mat.

2.2. Flip the speaker housing gently from the bottom to reveal the speaker cable. Use precision tweezers to flip the lock and unplug the ribbon cable, then set the speaker aside.

Step 3: Extract the Faulty Left and Right Main Boards

3.1. Apply heat to the adhesive blobs covering the ribbon connectors, then peel off the old glue using precision tweezers.

3.2. Unplug all the ribbon cables from the main board.

3.3. Apply soldering flux over all the wires connected to the main board, then desolder them with a soldering iron. The left side has 3 extra wires connected to the battery that you must also remove.

Ninja Repair Tip: Take a photo of the wires soldered to the main board to use as a reference while resoldering them.

3.4. Unfasten two 2.0 mm Phillips screws securing the main board to the earcup housing, then store them carefully in one of the slots on the rubber work mat.

Step 4: Install a New Left or Right Main Board

4.1. Grab a new main board, then align it with the small pin in the earcup housing, so that it remains in place.

4.2. Fasten two 2.0mm Phillips screws to the main board.

4.3. Reconnect the ribbon cables to the main board.

4.4. Resolder the main wires to the main board using the reference photograph to ensure all the wires are connected in their correct positions. When replacing the left main board, remember to resolder the 3 battery wires.

Step 5: Reassemble the Bose QuietComfort (QC) Ultra Headphones

5.1. Grab the left or right speaker housings and plug in the ribbon cables to the main board with precision tweezers.

5.2. Flip the speaker housing over the earcup, then secure the assembly by fastening four 1.5mm Phillips screws.

5.3. Insert the foam mesh.

5.4. Align the grooves on the earpad cushion with those on the earcup and push them into place.

Congratulations! Your Bose QuietComfort (QC) Ultra Wireless Bluetooth Headphones are Ready to Use

You have successfully replaced the faulty left and right main boards on the Bose QuietComfort (QC) Ultra headphones. Check charging stability, audio quality, touch response, and Bluetooth pairing to confirm the device is working properly.
