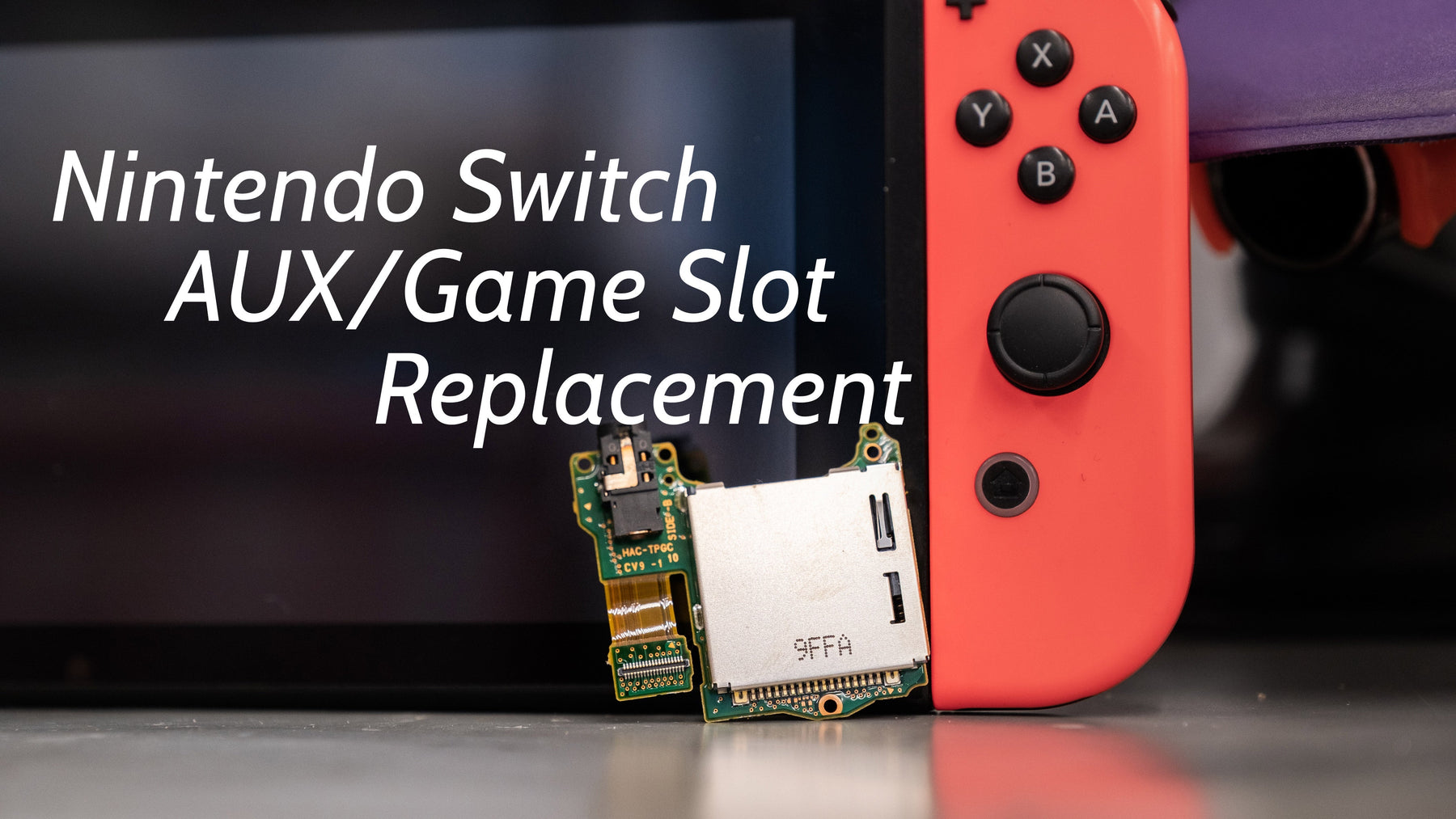

Nintendo Switch AUX Jack/Game Slot Replacement Tutorial

Has the aux jack stopped working on your Switch? Or are games no longer being read by your console? This guide shows you how to replace the AUX jack/game slot assembly.


If you would prefer to read a written repair guide, check that out below. Or if the tool cost seems prohibitive for a one time repair and you would prefer that we complete this repair for you, check out our Repair Catalog to see if we offer repair services for this device.


Are you a business? We offer wholesale discounts on our repair services if you are sending numerous units in for repair or want to send us continuing batches of devices for repair on a regular basis. Contact our support team for more info (This email is only for wholesale inquiries, please contact for other inquiries).



Repair Difficulty: Moderate

Time to complete: 60-90 minutes

The tools and parts that you will need for this repair:

      1. A Game Card Slot/AUX Jack Assembly
      2. Nylon Spudger Tool (For unlocking ribbon connectors and doing other tasks that require a non conductive tool)
      3. Repair Kit (Or a Small Phillips Screwdriver and a Y Screwdriver)
      4. Anti-Static Parts Organizer Mat



1. Remove the Back Cover

Using your Y tip screwdriver, remove the screw in each corner of the back cover.

Remove the screw in each corner of the back cover


Using your Phillips head screwdriver, remove the two screws in the center of the bottom side of the console, the single screw in the center of the top side of the console, and the single screw in the center of each Joy Con rail on the sides of the console.

Two screws on the bottom side

Single screw on the top side

Screw in the center of each Joy Con rail


Remove the screw under the kick stand and pop the came cartridge cover out.

Single screw under the kickstand

Pop the game slot cover out


With all of the screws removed, lift the back cover away from the console starting on the charge port side then wiggle the case on all of the other sides to lift it free. We would strongly recommend watching how to do this part in The Video so as not to break the back cover.

Lifting the back cover up starting with the bottom


2. Remove the Heat Sink

Remove the 7 silver screws from the metal heat sink, starting with the one in the center next to the fan.

7 silver screws in the heat sink


With the screws removed, unplug and remove the micro SD card reader by pinching the reader in your fingers then lifting straight away from the console as seen in the photo below.

Removing the Micro SD card reader


Lastly, lift the heat sink away from the console.

Lifting the heat sink away from the console


3. Disconnect the Battery

Disconnect the battery cable using a flathead screwdriver or your nylon spudger tool. The plug comes straight up and away from the board.

The battery connector on the board

Lifting the battery connector with a flat head screwdriver


4. Remove The AUX/Game Slot Assembly

Remove the 3 silver screws that hold the game slot and headphone jack assembly in place. All of the silver screws are the same, but it is good practice to organize the screws and parts so that you don't lose them.

3 Silver screws hold the game slot and headphones jack in place


Lift the black clip that holds the ribbon cable on the game slot using your fingernail or a flat head screwdriver. Be very gentle with this clip. (It might be helpful to watch this in The Video).

Lifting the clip on the ribbon cable


Slide the ribbon cable out of the clip.

 Slide the ribbon cable out of its connection


Using your plastic pry tool, lift the cable on the left side away from the console.

lifting the left side connection up with your plastic pry tool


Gently lift the assembly out of the console and to the right away from the copper heat pipe.

Removing the whole assembly


5. Install the New Game/AUX Assembly

Slide the game slot in underneath the heat pipe and lift the ribbon cable on the right so that it is above the game slot.

Sliding the game slot assembly into its place

lifting the ribbon cable up and over the assembly


Place the black cover over the headphone port then re-install the 3 screws that hold the assembly in place.

Adding the black cover onto the headphone jack

3 screws to re-insert


Slide the ribbon cable on the other side of the game slot into its connector then, gently close the latch.

Sliding the ribbon cable into its slot and locking it


Gently push the connector on the left side straight down onto the motherboard. Don't force it, this can take some time to align the plug properly, be gentle and position it until it will click in with minimal force.

Attaching the clip in connector


Re-connect the battery cable.

Reconnecting the battery cable


6. Replace the Heatsink

Place the heatsink back onto the console then gently attach the Micro SD card reader back onto its connector and align the slot onto the two dowels that hold it in place.

Attaching the SD card reader over the heatsink


Re-insert all 7 screws that hold down the heatsink starting with the one that holds the Micro SD slot in its place.

Securing the screw on the Micro SD card reader first



7. Attach the back cover

Start by aligning the two tabs on the bottom of the back cover with the two holes near the charging port then carefully lay the back cover down onto the console.

Aligning the tabs at the bottom of the back cover into the unit


Gently press in the center at the top of the back cover to lock the snap connectors in place. The back cover should be flush with the console all around after the top locks into place.

 Snapping the top of the back cover down into place


Re-insert the two screws in the bottom of the console, the single screw in the top, and the single screw in the center of each Joy Con rail. Since these screws aren't magnetic, it helps to aim your screwdriver down and hold the screw on the end then drop the screw into its hole and tighten it until snug.

Two screws at the bottom of the console

Single screw at the top

Single screw in the center of each Joy Con rail


Lift the kickstand and re-insert the short wide-headed screw into its hole.

Inserting the screw that goes under the kickstand


Using your Y tip screwdriver, re-insert the screw into each corner of the back housing.

Inserting the four Y headed screws


8. Get back to enjoying your gear 🤓

If you have any questions in regards to this repair, feel free to shoot us an email or text and we will do our best to reply to you as quickly as possible. Please inquire using our Repair Catalog if you are wondering how much a certain repair will cost. If you do not see your item in our repair catalog, it means that we do not offer repair services for it.
